Designed and built an antweight vertical spinner battlebot
Developed two iterations (V1 and V2) to improve durability, balance, and serviceability
Integrated a high-speed spinner weapon system for impact-based combat
Built a compact drivetrain and chassis layout optimized for weight and reliability
Used custom 3D printed parts to mount and organize internal components
Battle Bot
Introduction
This project involved designing and building a competition-style antweight battlebot using custom mechanical and electronic systems. The goal was to gain hands-on experience in mechanical design, electronics integration, motor control, and iterative prototyping while developing a combat-ready robot.
Date
December, 2025
ROLES
Builder
Designer
Functions
Vertical Spinner Blade
Antweight Malenki System
What?
How?

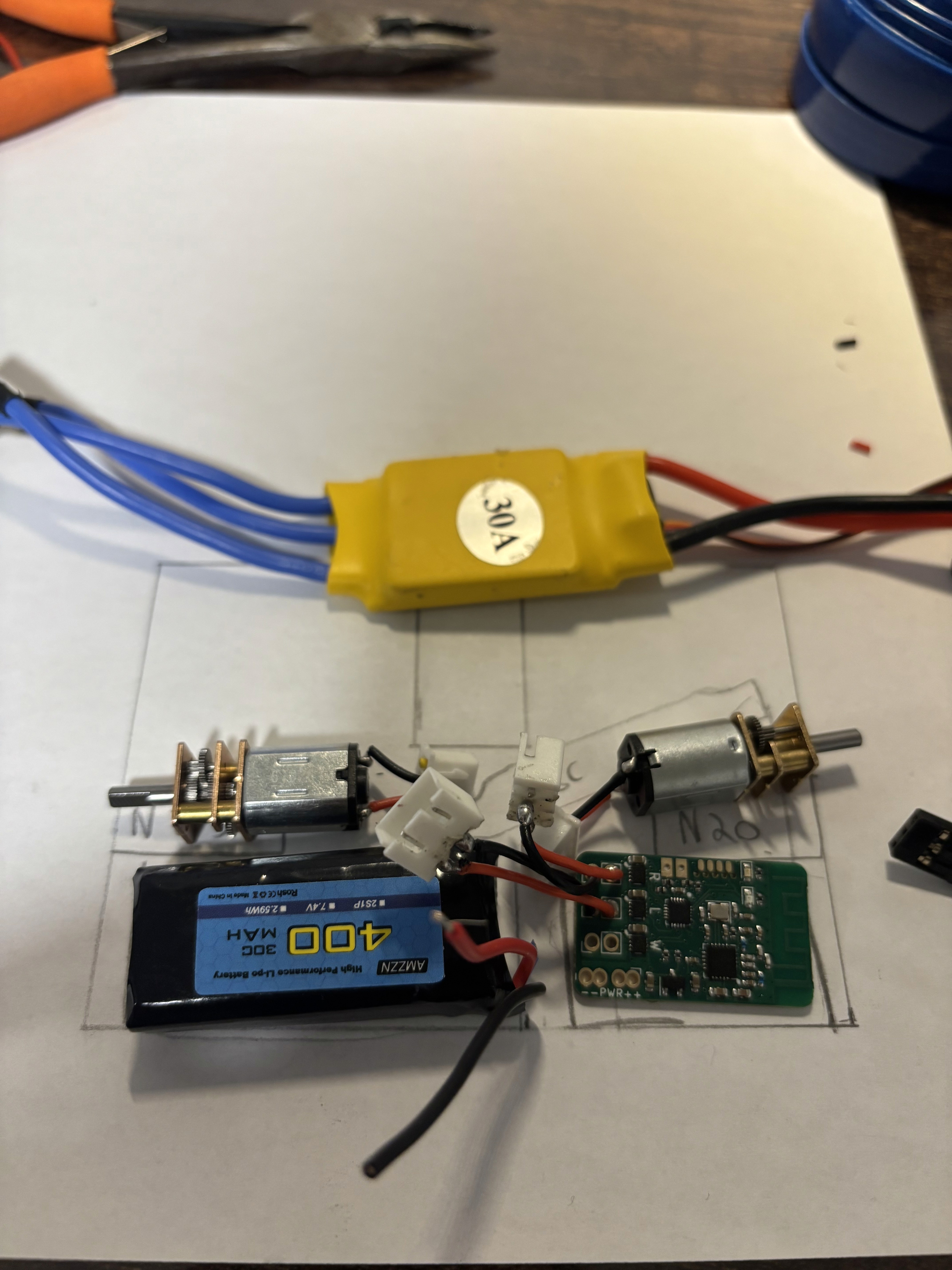

Used a Malenki Nano ESC and brushless motors for drivetrain and weapon control

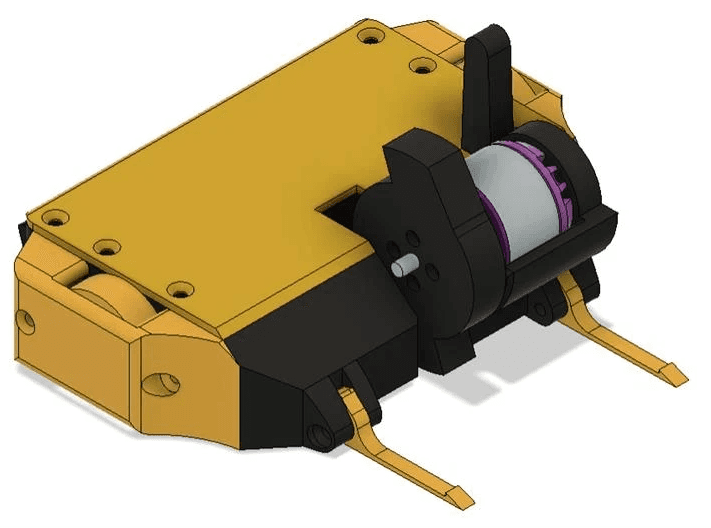

Designed and printed custom structural components to support the spinner system

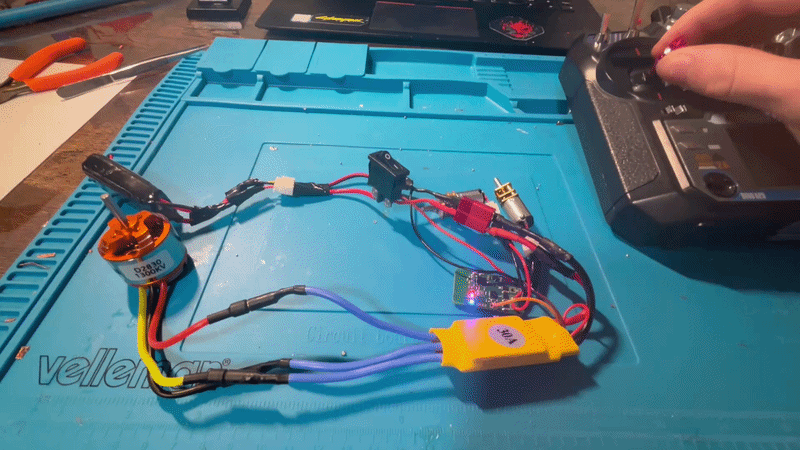

Built a fully soldered wiring harness to ensure reliable electrical connections
Tuned motor control and balance to maintain stability during weapon spin-up
Iteratively tested, diagnosed failures, and rebuilt improved versions
Results:
Successfully built a functional vertical spinner antweight battlebot
Improved durability and internal layout between V1 and V2 iterations
Achieved reliable drivetrain control and high-speed weapon operation
Developed practical skills in mechanical design, electronics, soldering, and iterative engineering
